Installing the Lift Lance
Lance Option Valve and Airline Installation

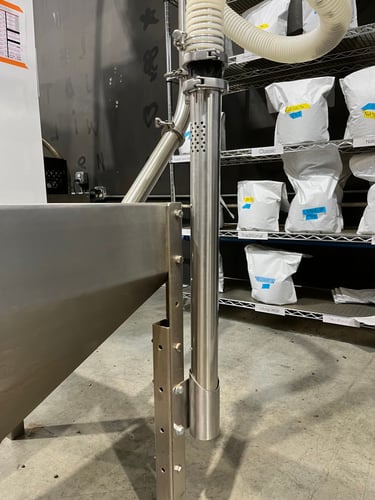

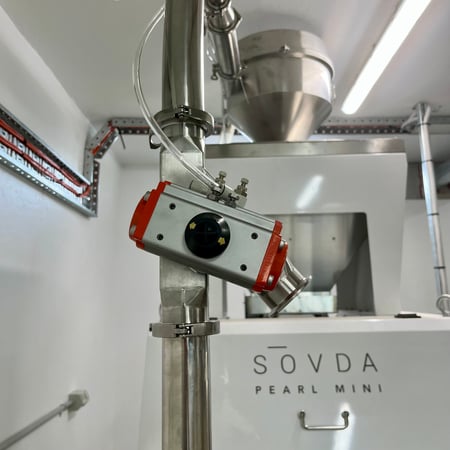

If you have a lance option with your lift, install your lance Y valve (orange valve) within your existing pipe run (replace your 400mm pipe to 320mm pipe). If you have a lance lift only, connect your flexi-pipe adapter after your 600mm 90degree pipe, and then connect your other adapter to the lance piece and flexi-pipe.

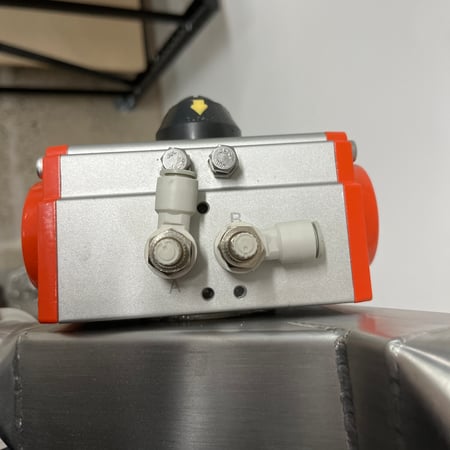

On each valve you’ll see to screw holes and you’ll screw in your 8mm elbows. You’ll need to use a wrench to install these. The plastic elbow piece will rotate independently from the metal screw.

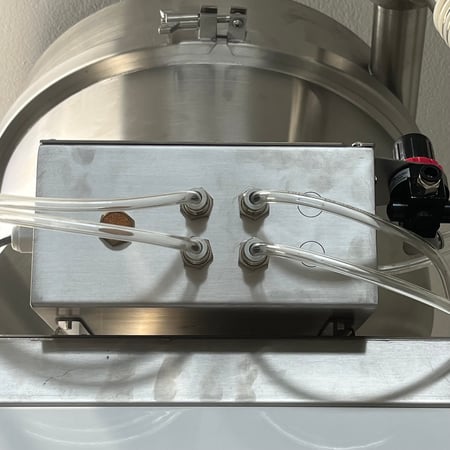

You then can use the 8mm flexi-pipe to connect this Y valve to the back of the solenoid box.
